Ceratizit
8.419854093E9

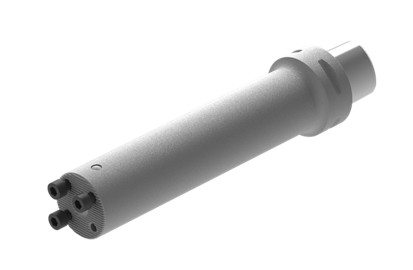

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 406.0 |
|---|---|
| Overall Length (Inch) | 15.99 |
| Short Description | WK40.ISO26623-1.PSC63.GH-A.40.408 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK40.ISO26623-1.PSC63.GH-A.40.408 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.74 |
| Connection Diameter (Metric) | 44.0 |
| Functional Length (Decimal) | 14.49 |
| Functional Length (Metric) | 368.0 |
| Connection Diameter Workpiece Side (Decimal) | 1.58 |
| Connection Diameter Workpiece Side (Metric) | 40.0 |
| Flange Diameter (Decimal) | 2.48 |
| Flange Diameter (Metric) | 63.0 |
| Body Length (Metric) | 346.0 |
| Protruding Length (Decimal) | 16.07 |
| Protruding Length (Metric) | 408.0 |
