Ceratizit
8.419843237E9

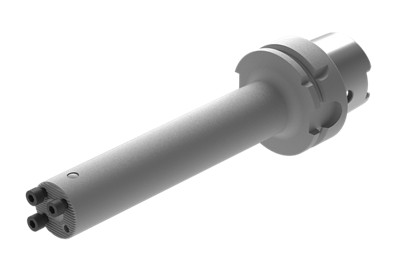

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 252.9 |
|---|---|
| Overall Length (Inch) | 9.96 |
| Short Description | WK32.ISO12164-3.HSK-T63.GH-A.32.221 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK32.ISO12164-3.HSK-T63.GH-A.32.221 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Functional Length (Decimal) | 7.33 |
| Functional Length (Metric) | 186.0 |
| Connection Diameter Workpiece Side (Decimal) | 1.26 |
| Connection Diameter Workpiece Side (Metric) | 32.0 |
| Body Length (Metric) | 160.0 |
| Protruding Length (Decimal) | 8.71 |
| Protruding Length (Metric) | 221.0 |
