Ceratizit
8.419842595E9

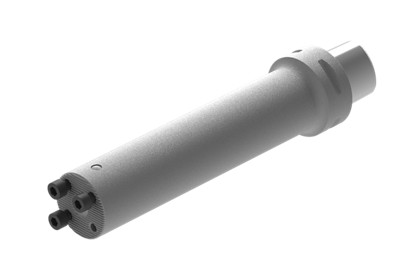

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 156.0 |
|---|---|
| Overall Length (Inch) | 6.15 |
| Short Description | WK25.ISO26623-1.PSC40.GH-A.25.167 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK25.ISO26623-1.PSC40.GH-A.25.167 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.11 |
| Connection Diameter (Metric) | 28.0 |
| Functional Length (Decimal) | 5.2 |
| Functional Length (Metric) | 132.0 |
| Connection Diameter Workpiece Side (Decimal) | 0.99 |
| Connection Diameter Workpiece Side (Metric) | 25.0 |
| Flange Diameter (Decimal) | 1.58 |
| Flange Diameter (Metric) | 40.0 |
| Body Length (Metric) | 112.0 |
| Protruding Length (Decimal) | 6.58 |
| Protruding Length (Metric) | 167.0 |
