Ceratizit
8.419503293E9

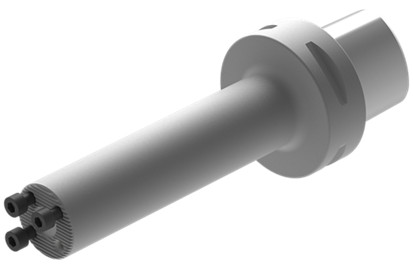

DAMPED EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 188.0 |
|---|---|
| Overall Length (Inch) | 7.41 |
| Short Description | WK32.ISO26623-1.PSC63.GH-S.32.185 |
| Long Description | DAMPED EXCHANGEABLE HEAD BASIC HOLDER WK32.ISO26623-1.PSC63.GH-S.32.185 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.74 |
| Connection Diameter (Metric) | 44.0 |
| Functional Length (Decimal) | 5.91 |
| Functional Length (Metric) | 150.0 |
| Connection Diameter Workpiece Side (Decimal) | 1.26 |
| Connection Diameter Workpiece Side (Metric) | 32.0 |
| Flange Diameter (Decimal) | 2.48 |
| Flange Diameter (Metric) | 63.0 |
| Body Length (Metric) | 128.0 |
| Protruding Length (Decimal) | 7.29 |
| Protruding Length (Metric) | 185.0 |
