Ceratizit
8.419204095E9

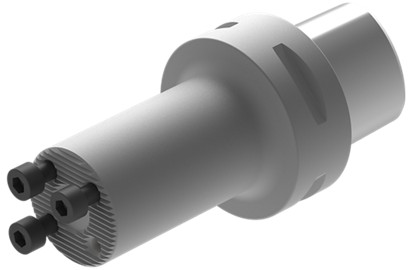

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 104.0 |
|---|---|
| Overall Length (Inch) | 4.1 |
| Short Description | WK40.ISO26623-1.PSC40.GH.40.120 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK40.ISO26623-1.PSC40.GH.40.120 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.11 |
| Connection Diameter (Metric) | 28.0 |
| Functional Length (Decimal) | 3.15 |
| Functional Length (Metric) | 80.0 |
| Connection Diameter Workpiece Side (Decimal) | 1.58 |
| Connection Diameter Workpiece Side (Metric) | 40.0 |
| Flange Diameter (Decimal) | 1.58 |
| Flange Diameter (Metric) | 40.0 |
| Protruding Length (Decimal) | 4.73 |
| Protruding Length (Metric) | 120.0 |
