Ceratizit
8.419204093E9

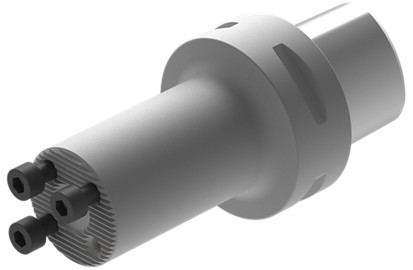

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 138.0 |
|---|---|
| Overall Length (Inch) | 5.44 |
| Short Description | WK40.ISO26623-1.PSC63.GH.40.140 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK40.ISO26623-1.PSC63.GH.40.140 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.74 |
| Connection Diameter (Metric) | 44.0 |
| Functional Length (Decimal) | 3.94 |
| Functional Length (Metric) | 100.0 |
| Connection Diameter Workpiece Side (Decimal) | 1.58 |
| Connection Diameter Workpiece Side (Metric) | 40.0 |
| Flange Diameter (Decimal) | 2.48 |
| Flange Diameter (Metric) | 63.0 |
| Body Length (Metric) | 78.0 |
| Protruding Length (Decimal) | 5.52 |
| Protruding Length (Metric) | 140.0 |
