Ceratizit
8.419202594E9

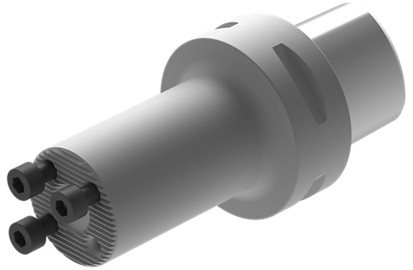

EXCHANGEABLE HEAD BASIC HOLDER
Specifications
| Overall Length (Metric) | 85.0 |
|---|---|
| Overall Length (Inch) | 3.35 |
| Short Description | WK25.ISO26623-1.PSC50.GH.25.90 |
| Long Description | EXCHANGEABLE HEAD BASIC HOLDER WK25.ISO26623-1.PSC50.GH.25.90 |
| Direction Of Hand | Right, Left |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 1.38 |
| Connection Diameter (Metric) | 35.0 |
| Functional Length (Decimal) | 2.17 |
| Functional Length (Metric) | 55.0 |
| Connection Diameter Workpiece Side (Decimal) | 0.99 |
| Connection Diameter Workpiece Side (Metric) | 25.0 |
| Flange Diameter (Decimal) | 1.97 |
| Flange Diameter (Metric) | 50.0 |
| Body Length (Metric) | 35.0 |
| Protruding Length (Decimal) | 3.55 |
| Protruding Length (Metric) | 90.0 |
