Ceratizit
7.858201003E9

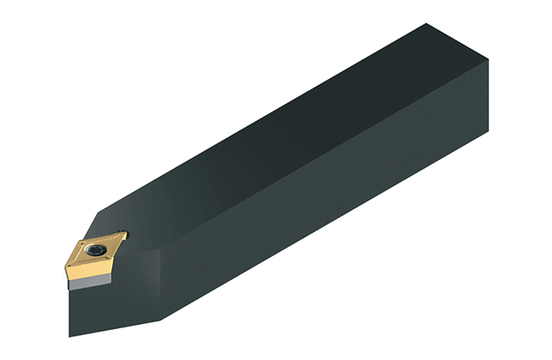

MAXILOCK S TOOLHOLDER
Specifications
| Overall Length (Metric) | 101.6 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDPCN |
| Overall Length (Inch) | 4.0 |
| Short Description | SDPCN 10-3 |
| Long Description | MAXILOCK S TOOLHOLDER SDPCN 10-3 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.63 Inch |
| Shank Width (Metric) | 15.88 |
| Shank Height (Metric) | 15.88 |
| Functional Width (Decimal) | 0.24 |
| Functional Width (Metric) | 5.9 |
| Head Length (Decimal) | 0.63 |
| Head Length (Metric) | 16.01 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 16.01 |
| Reduced Body Diameter Length (Decimal) | 0.63 |
| Holder Form | SDPC62,5 |
