Ceratizit
7.858200602E9

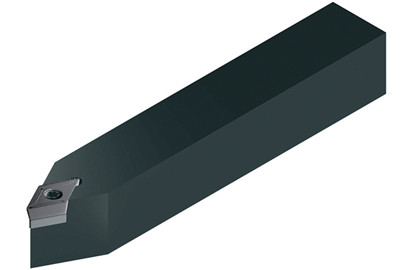

MAXILOCK S TOOLHOLDER
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDPCN |
| Overall Length (Inch) | 2.5 |
| Short Description | SDPCN 06-2 |
| Long Description | MAXILOCK S TOOLHOLDER SDPCN 06-2 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.38 Inch |
| Shank Width (Metric) | 9.53 |
| Shank Height (Metric) | 9.53 |
| Functional Width (Decimal) | 0.2 |
| Functional Width (Metric) | 5.01 |
| Head Length (Decimal) | 0.37 |
| Head Length (Metric) | 9.4 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 9.4 |
| Reduced Body Diameter Length (Decimal) | 0.37 |
| Holder Form | SDPC62,5 |
