Ceratizit
7.857801224E9

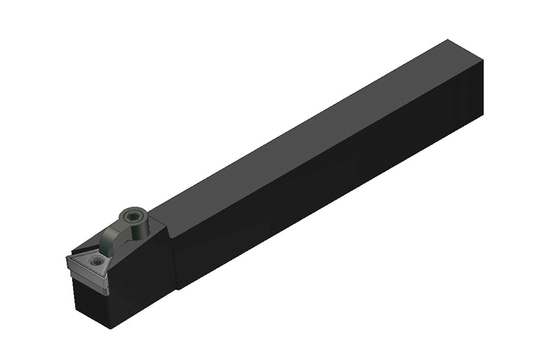

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 114.3 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MTCNN |
| Overall Length (Inch) | 4.5 |
| Short Description | MTCNN 12-4B |
| Long Description | MAXILOCK M TOOLHOLDER MTCNN 12-4B |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.75 Inch |
| Shank Width (Metric) | 19.05 |
| Shank Height (Metric) | 19.05 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11.0 |
| Head Length (Decimal) | 1.38 |
| Head Length (Metric) | 35.06 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 35.06 |
| Reduced Body Diameter Length (Decimal) | 1.38 |
| Holder Form | MTCN90 |
