Ceratizit
7.857702046E9

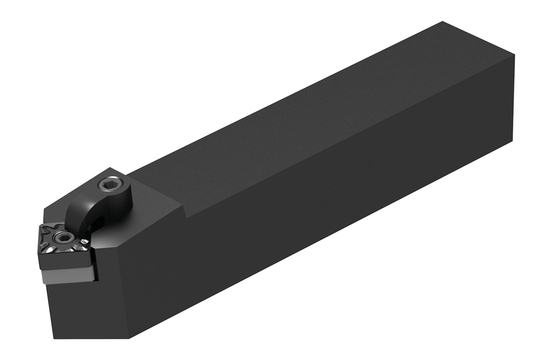

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MSDNN |
| Overall Length (Inch) | 6.0 |
| Short Description | MSDNN 20-6D |
| Long Description | MAXILOCK M TOOLHOLDER MSDNN 20-6D |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.25 Inch |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Functional Width (Decimal) | 0.63 |
| Functional Width (Metric) | 15.88 |
| Head Length (Decimal) | 1.75 |
| Head Length (Metric) | 44.45 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 44.45 |
| Reduced Body Diameter Length (Decimal) | 1.75 |
| Holder Form | MSDN45 |
