Ceratizit
7.857001643E9

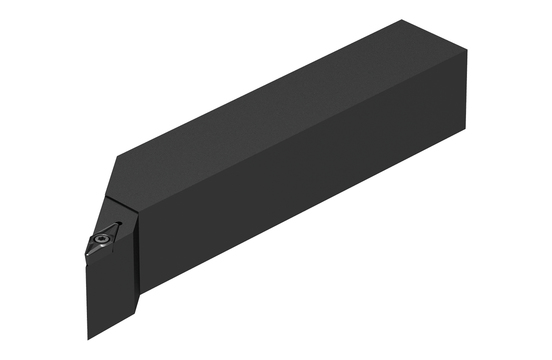

MAXILOCK S TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVJCR |
| Overall Length (Inch) | 6.0 |
| Short Description | SVJCR 16-3D |
| Long Description | MAXILOCK S TOOLHOLDER SVJCR 16-3D |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Functional Width (Decimal) | 1.25 |
| Functional Width (Metric) | 31.75 |
| Head Length (Decimal) | 1.61 |
| Head Length (Metric) | 40.9 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 40.9 |
| Reduced Body Diameter Length (Decimal) | 1.61 |
| Holder Form | SVJC93 |
