Ceratizit
7.856601223E9

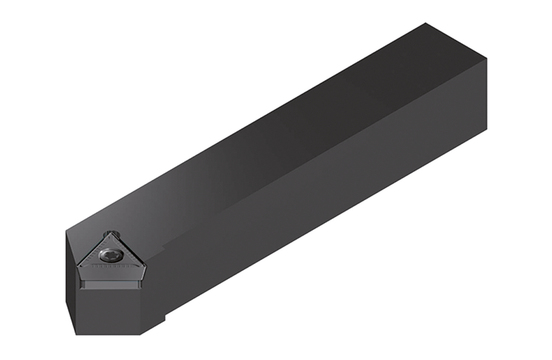

MAXILOCK S TOOLHOLDER
Specifications
| Overall Length (Metric) | 114.3 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STTCR |
| Overall Length (Inch) | 4.5 |
| Short Description | STTCR 12-3B |
| Long Description | MAXILOCK S TOOLHOLDER STTCR 12-3B |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.75 Inch |
| Shank Width (Metric) | 19.05 |
| Shank Height (Metric) | 19.05 |
| Functional Width (Decimal) | 0.72 |
| Functional Width (Metric) | 18.24 |
| Head Length (Decimal) | 1.0 |
| Head Length (Metric) | 25.4 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 25.4 |
| Reduced Body Diameter Length (Decimal) | 1.0 |
| Holder Form | STTC60 |
