Ceratizit
7.856000802E9

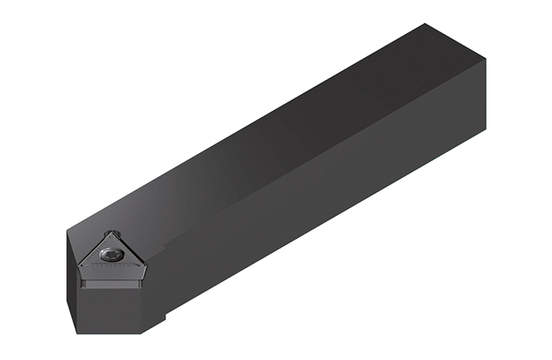

MAXILOCK S TOOLHOLDER
Specifications
| Overall Length (Metric) | 88.9 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STDCR |
| Overall Length (Inch) | 3.5 |
| Short Description | STDCR 08-2 |
| Long Description | MAXILOCK S TOOLHOLDER STDCR 08-2 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.50 Inch |
| Shank Width (Metric) | 12.7 |
| Shank Height (Metric) | 12.7 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.01 |
| Head Length (Decimal) | 0.57 |
| Head Length (Metric) | 14.48 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 14.48 |
| Reduced Body Diameter Length (Decimal) | 0.57 |
| Holder Form | STDC45 |
