Ceratizit
7.854201023E9

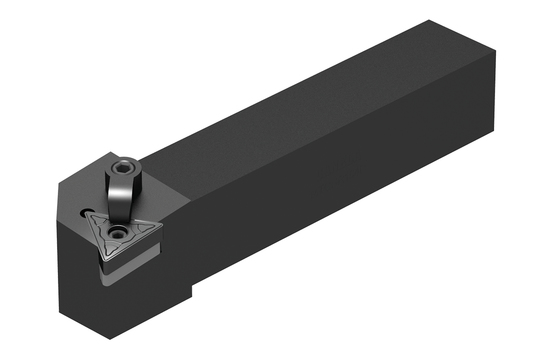

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 114.3 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MTGNR |
| Overall Length (Inch) | 4.5 |
| Short Description | MTGNR 10-3B |
| Long Description | MAXILOCK M TOOLHOLDER MTGNR 10-3B |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.63 Inch |
| Shank Width (Metric) | 15.88 |
| Shank Height (Metric) | 15.88 |
| Functional Width (Decimal) | 0.88 |
| Functional Width (Metric) | 22.23 |
| Head Length (Decimal) | 1.0 |
| Head Length (Metric) | 25.4 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 25.4 |
| Reduced Body Diameter Length (Decimal) | 1.0 |
| Holder Form | MTGN90 |
