Ceratizit
7.853702046E9

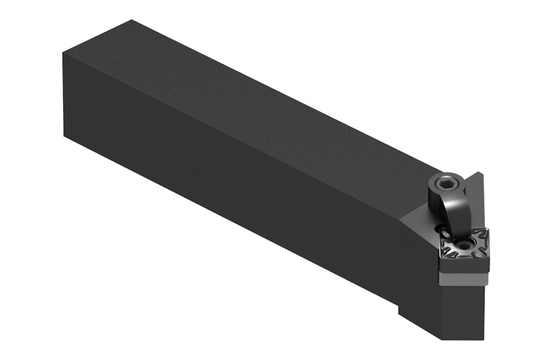

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MSSNL |
| Overall Length (Inch) | 6.0 |
| Short Description | MSSNL 20-6D |
| Long Description | MAXILOCK M TOOLHOLDER MSSNL 20-6D |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.25 Inch |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Functional Width (Decimal) | 1.01 |
| Functional Width (Metric) | 25.66 |
| Head Length (Decimal) | 1.47 |
| Head Length (Metric) | 37.34 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 37.34 |
| Reduced Body Diameter Length (Decimal) | 1.47 |
| Holder Form | MSSN45 |
