Ceratizit
7.852401645E9

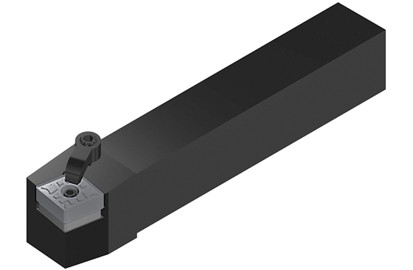

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MCRNR |
| Overall Length (Inch) | 6.0 |
| Short Description | MCRNR 16-5D |
| Long Description | MAXILOCK M TOOLHOLDER MCRNR 16-5D |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Functional Width (Decimal) | 1.11 |
| Functional Width (Metric) | 27.97 |
| Head Length (Decimal) | 1.1 |
| Head Length (Metric) | 27.94 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 27.94 |
| Reduced Body Diameter Length (Decimal) | 1.1 |
| Holder Form | MCRN75 |
