Ceratizit
7.851802444E9

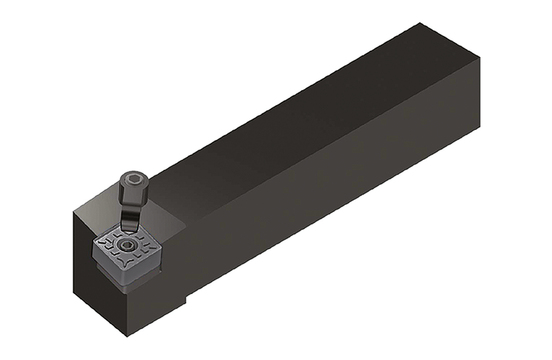

MAXILOCK M TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-M |
| Toolholder Style | MCGNR |
| Overall Length (Inch) | 6.0 |
| Short Description | MCGNR 24-4D |
| Long Description | MAXILOCK M TOOLHOLDER MCGNR 24-4D |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.50 Inch |
| Shank Width (Metric) | 38.1 |
| Shank Height (Metric) | 38.1 |
| Functional Width (Decimal) | 2.0 |
| Functional Width (Metric) | 50.8 |
| Head Length (Decimal) | 1.25 |
| Head Length (Metric) | 31.75 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 31.75 |
| Reduced Body Diameter Length (Decimal) | 1.25 |
| Holder Form | MCGN90 |
