Ceratizit
7.851502486E9

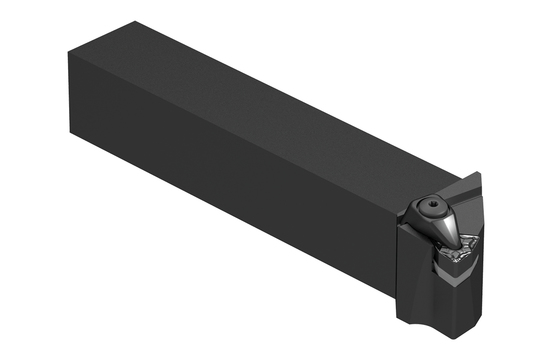

MAXILOCK D TOOLHOLDER
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DWLNL |
| Overall Length (Inch) | 7.0 |
| Short Description | DWLNL 24-4E-N |
| Long Description | MAXILOCK D TOOLHOLDER DWLNL 24-4E-N |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.50 Inch |
| Shank Width (Metric) | 38.1 |
| Shank Height (Metric) | 38.1 |
| Functional Width (Decimal) | 2.0 |
| Functional Width (Metric) | 50.8 |
| Head Length (Decimal) | 1.25 |
| Head Length (Metric) | 31.75 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 31.75 |
| Reduced Body Diameter Length (Decimal) | 1.25 |
| Holder Form | DWLN95 |
