Ceratizit
7.851401293E9

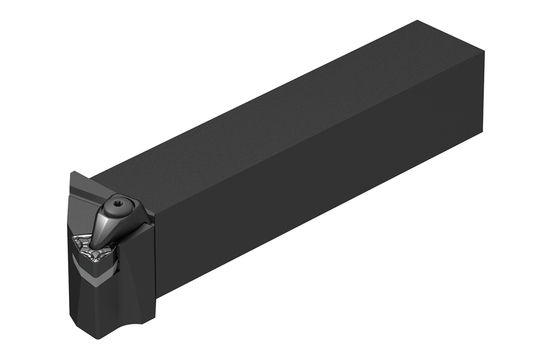

MAXILOCK D TOOLHOLDER
Specifications
| Overall Length (Metric) | 114.3 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DWLNR |
| Overall Length (Inch) | 4.5 |
| Short Description | DWLNR 12-4B-N |
| Long Description | MAXILOCK D TOOLHOLDER DWLNR 12-4B-N |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.75 Inch |
| Shank Width (Metric) | 19.05 |
| Shank Height (Metric) | 19.05 |
| Functional Width (Decimal) | 1.0 |
| Functional Width (Metric) | 25.4 |
| Head Length (Decimal) | 1.25 |
| Head Length (Metric) | 31.75 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 31.75 |
| Reduced Body Diameter Length (Decimal) | 1.25 |
| Holder Form | DWLN95 |
