Ceratizit
7.850901689E9

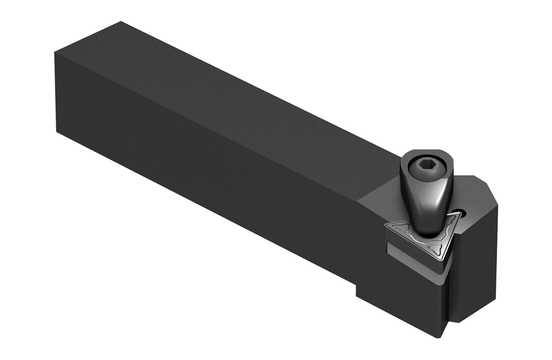

MAXILOCK D TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DTGNL |
| Overall Length (Inch) | 6.0 |
| Short Description | DTGNL 16-4D-N |
| Long Description | MAXILOCK D TOOLHOLDER DTGNL 16-4D-N |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Functional Width (Decimal) | 1.25 |
| Functional Width (Metric) | 31.75 |
| Head Length (Decimal) | 1.34 |
| Head Length (Metric) | 33.99 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 33.99 |
| Reduced Body Diameter Length (Decimal) | 1.34 |
| Holder Form | DTGN90 |
