Ceratizit
7.85010208E9

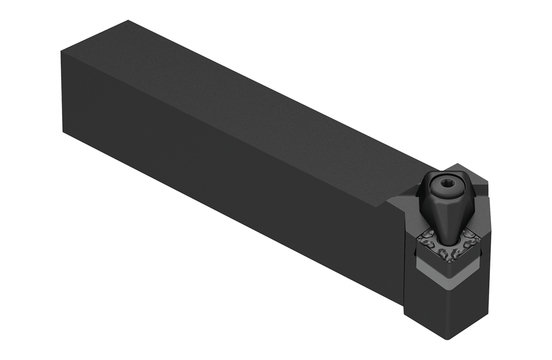

MAXILOCK D TOOLHOLDER
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DCLNL |
| Overall Length (Inch) | 6.0 |
| Short Description | DCLNL 20-6D-N |
| Long Description | MAXILOCK D TOOLHOLDER DCLNL 20-6D-N |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.25 Inch |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Functional Width (Decimal) | 1.5 |
| Functional Width (Metric) | 38.1 |
| Head Length (Decimal) | 1.65 |
| Head Length (Metric) | 41.91 |
| Connection Type | VKT - Square |
| Reduced Body Diameter Length (Metric) | 41.91 |
| Reduced Body Diameter Length (Decimal) | 1.65 |
| Holder Form | DCLN95 |
