Ceratizit
7.628851601E9

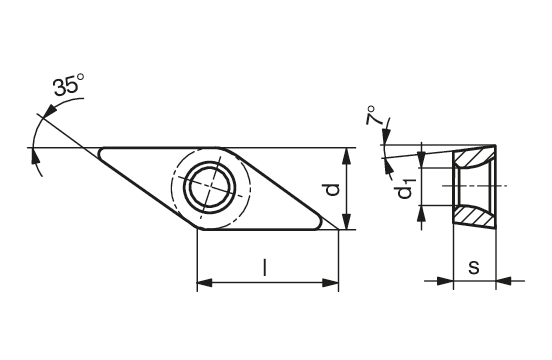

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VCMT |
| Thickness (Inch) | 0.13 |
| Short Description | VCMT 110304EN-SMF CTCP125-P |
| Long Description | CARBIDE TURNING INSERT VCMT 110304EN-SMF CTCP125-P |
| Grade | CTCP125_P |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.44 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 11.1 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -SMF |
| Screw Hole Diameter (Decimal) | 0.12 |
| Screw Hole Diameter (Metric) | 2.9 |
| Rake Angle | 13 degrees |
| Tolerance Class | M |
