Ceratizit
7.627873201E9
CARBIDE TURNING INSERT

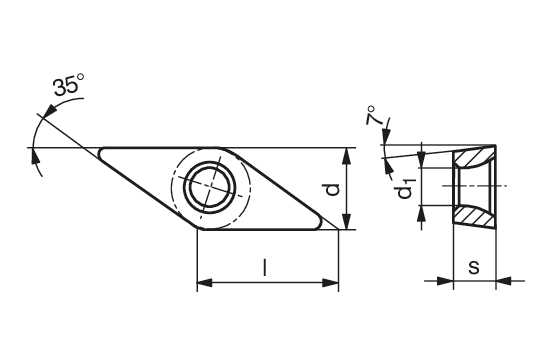

Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | VCMT |
| Thickness (Inch) | 0.19 |
| Short Description | VCMT 160412EN-SM CTCP135-P |
| Long Description | CARBIDE TURNING INSERT VCMT 160412EN-SM CTCP135-P |
| Grade | CTCP135_P |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.66 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -SM |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 15 degrees |
| Tolerance Class | M |
