Ceratizit
7.62407E7

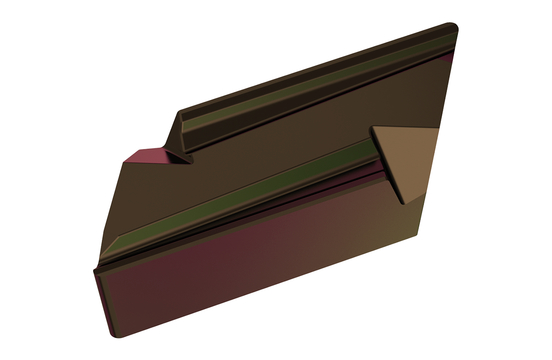

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.5 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | KNUX |
| Thickness (Inch) | 0.19 |
| Short Description | KNUX 160405ER-11 CTCP135 |
| Long Description | CARBIDE TURNING INSERT KNUX 160405ER-11 CTCP135 |
| Grade | CTCP135 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.63 |
| Direction Of Hand | Right |
| Chip Breaker | -11.0 |
| Tolerance Class | U |
