Ceratizit
7.6228702E7

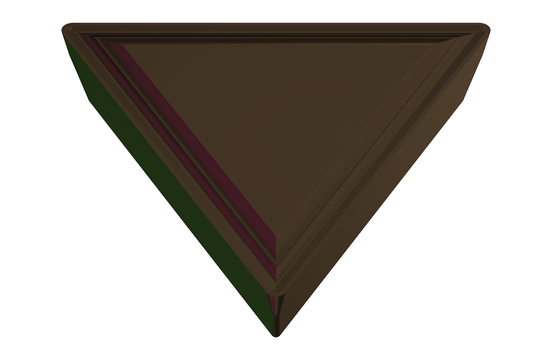

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TPMR |
| Thickness (Inch) | 0.13 |
| Short Description | TPMR 110304EN CTCP135 |
| Long Description | CARBIDE TURNING INSERT TPMR 110304EN CTCP135 |
| Grade | CTCP135 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.44 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 11 degrees |
| Tolerance Class | M |
