Ceratizit
7.622574601E9
CARBIDE TURNING INSERT

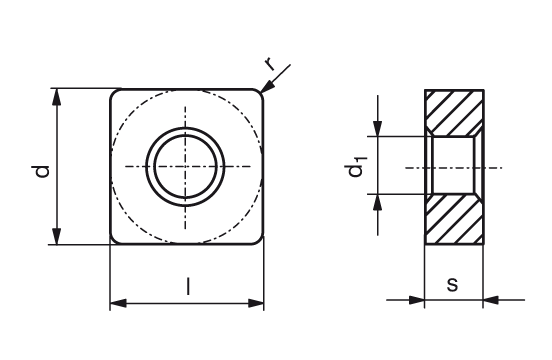

Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | SNMG |
| Thickness (Inch) | 0.25 |
| Short Description | SNMG 190616EN-M70 CTCP135-P |
| Long Description | CARBIDE TURNING INSERT SNMG 190616EN-M70 CTCP135-P |
| Grade | CTCP135_P |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.75 Inch |
| Inscribed Circle Diameter | 0.75 Inch |
| Inscribed Circle Diameter (Metric) | 19.05 |
| Cutting Edge Length (Metric) | 19.05 |
| Direction Of Hand | Neutral |
| Chip Breaker | -M70 |
| Screw Hole Diameter (Decimal) | 0.32 |
| Screw Hole Diameter (Metric) | 7.94 |
| Rake Angle | 15.70 degrees |
| Tolerance Class | M |
