Ceratizit
7.6208716E7

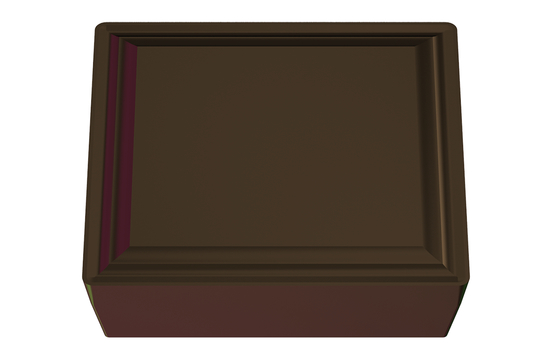

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | SPMR |
| Thickness (Inch) | 0.13 |
| Short Description | SPMR 120304EN CTCP135 |
| Long Description | CARBIDE TURNING INSERT SPMR 120304EN CTCP135 |
| Grade | CTCP135 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.70 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.5 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 11 degrees |
| Tolerance Class | M |
