Ceratizit
7.615273201E9
CARBIDE TURNING INSERT

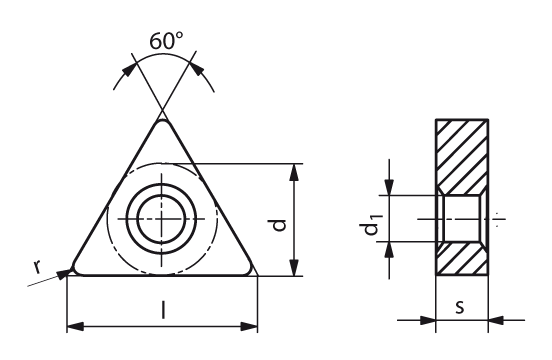

Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | TNMM |
| Thickness (Inch) | 0.19 |
| Short Description | TNMM 220412EN-R58 CTCP135-P |
| Long Description | CARBIDE TURNING INSERT TNMM 220412EN-R58 CTCP135-P |
| Grade | CTCP135_P |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.87 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 22.0 |
| Direction Of Hand | Neutral |
| Chip Breaker | -R58 |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 20 degrees |
| Tolerance Class | M |
