Ceratizit
7.612936001E9
CARBIDE TURNING INSERT

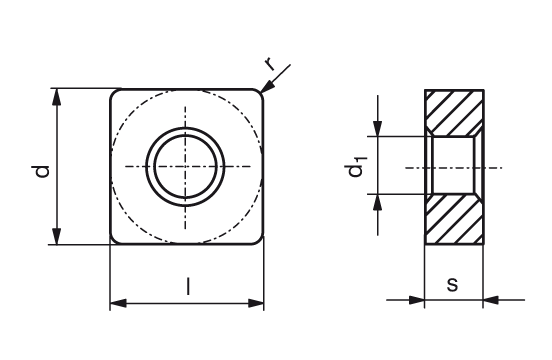

Specifications
| Thickness (Metric) | 7.94 |
|---|---|
| Corner Radius (Metric) | 2.4 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.1 |
| Style | SNMM |
| Thickness (Inch) | 0.32 |
| Short Description | SNMM 250724EN-R58 CTCP115-P |
| Long Description | CARBIDE TURNING INSERT SNMM 250724EN-R58 CTCP115-P |
| Grade | CTCP115_P |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 1 Inch |
| Inscribed Circle Diameter | 1 Inch |
| Inscribed Circle Diameter (Metric) | 25.4 |
| Cutting Edge Length (Metric) | 25.4 |
| Direction Of Hand | Neutral |
| Chip Breaker | -R58 |
| Screw Hole Diameter (Decimal) | 0.36 |
| Screw Hole Diameter (Metric) | 9.12 |
| Rake Angle | 20 degrees |
| Tolerance Class | M |
