Ceratizit
7.6113546E7

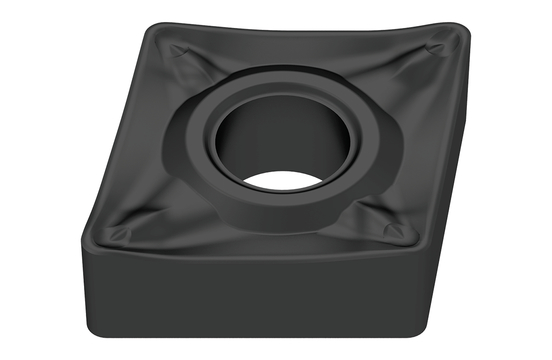

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | CNMM |
| Thickness (Inch) | 0.25 |
| Short Description | CNMM 160616SN-TRR CTCP125 |
| Long Description | CARBIDE TURNING INSERT CNMM 160616SN-TRR CTCP125 |
| Grade | CTCP125 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16.10 mm |
| Inscribed Circle Diameter | 15.87 mm |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Cutting Edge Length (Decimal) | 0.64 |
| Direction Of Hand | Neutral |
| Chip Breaker | -TRR |
| Screw Hole Diameter (Decimal) | 0.25 |
| Screw Hole Diameter (Metric) | 6.35 |
| Rake Angle | 14 degrees |
| Tolerance Class | M |
