Ceratizit
7.6110032E7

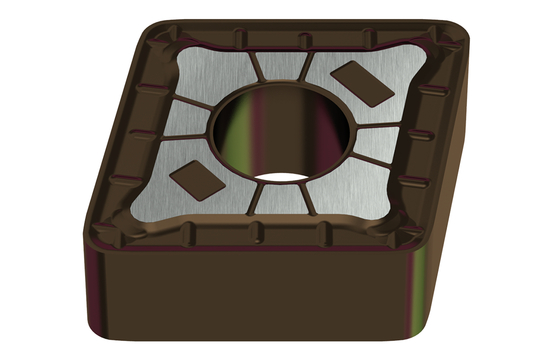

CERMET TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | CERMET |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG 120412EN-TFQ CTEP110 |
| Long Description | CERMET TURNING INSERT CNMG 120412EN-TFQ CTEP110 |
| Grade | CTEP110 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.90 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.51 |
| Direction Of Hand | Neutral |
| Chip Breaker | -TFQ |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 17 degrees |
| Tolerance Class | M |
