Ceratizit
7.531011809E9

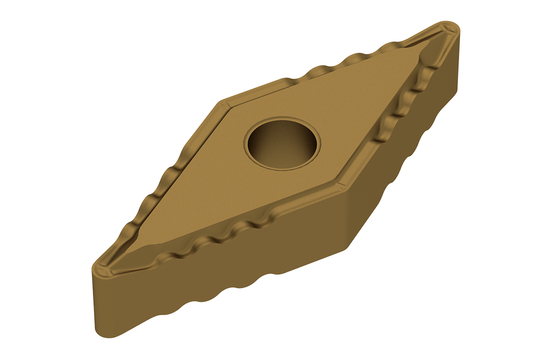

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | VNMG |
| Thickness (Inch) | 0.19 |
| Short Description | VNMG 160408EN-FMS CT-P25 |
| Long Description | CARBIDE TURNING INSERT VNMG 160408EN-FMS CT-P25 |
| Grade | CT-P25 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.66 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.6 |
| Direction Of Hand | Neutral |
| Chip Breaker | -FMS |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Tolerance Class | M |
