Ceratizit
7.530703409E9

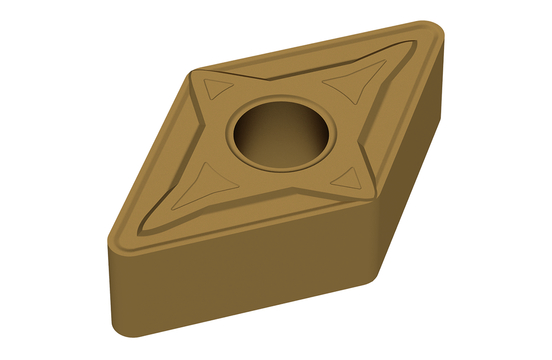

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | DNMG |
| Thickness (Inch) | 0.25 |
| Short Description | DNMG 150616EN-MRS CT-P15 |
| Long Description | CARBIDE TURNING INSERT DNMG 150616EN-MRS CT-P15 |
| Grade | CT-P15 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.61 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 15.5 |
| Direction Of Hand | Neutral |
| Chip Breaker | -MRS |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 20 degrees |
| Tolerance Class | M |
