Ceratizit
7.530410609E9

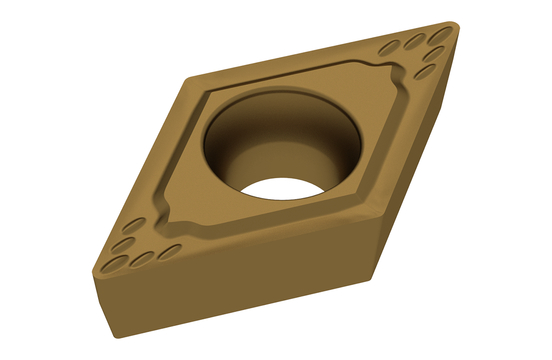

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DCMT |
| Thickness (Inch) | 0.1 |
| Short Description | DCMT 070208EN-FMS CT-P25 |
| Long Description | CARBIDE TURNING INSERT DCMT 070208EN-FMS CT-P25 |
| Grade | CT-P25 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.31 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 7.75 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -FMS |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Rake Angle | 13 degrees |
| Tolerance Class | M |
