Ceratizit
7.530313409E9

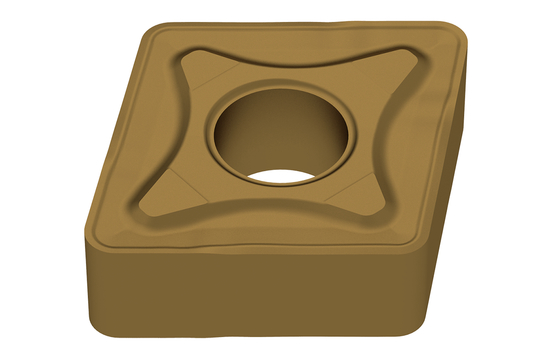

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG 120416EN-MRS CT-P25 |
| Long Description | CARBIDE TURNING INSERT CNMG 120416EN-MRS CT-P25 |
| Grade | CT-P25 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.51 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 12.9 |
| Direction Of Hand | Neutral |
| Chip Breaker | -MRS |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 15.70 degrees |
| Tolerance Class | M |
