Ceratizit
7.5213202E7

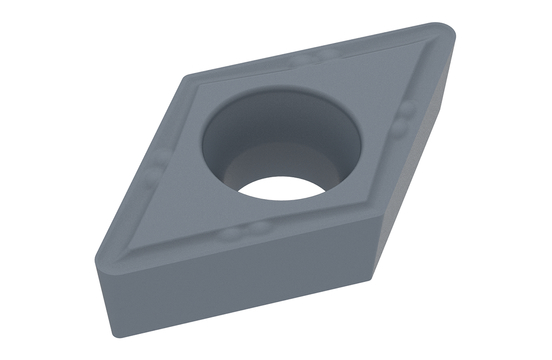

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCMT |
| Thickness (Inch) | 0.1 |
| Short Description | DCMT 070202EN-M25 CTPM125 |
| Long Description | CARBIDE TURNING INSERT DCMT 070202EN-M25 CTPM125 |
| Grade | CTPM125 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 7.75 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.31 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -M25 |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Rake Angle | 10 degrees |
| Tolerance Class | M |
