Ceratizit
7.5210304E9

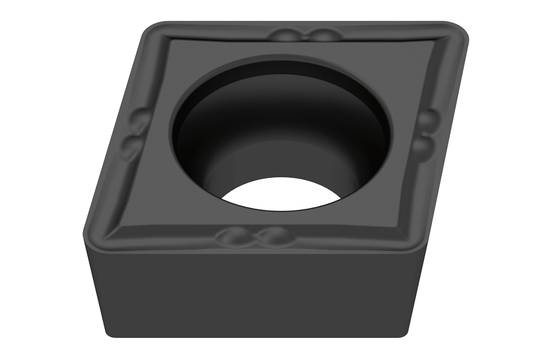

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCMT |
| Thickness (Inch) | 0.1 |
| Short Description | CCMT 060204EN-M25 CTCM130 |
| Long Description | CARBIDE TURNING INSERT CCMT 060204EN-M25 CTCM130 |
| Grade | CTCM130 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.26 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 6.4 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -M25 |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Rake Angle | 10 degrees |
| Tolerance Class | M |
