Ceratizit
7.5025206E7

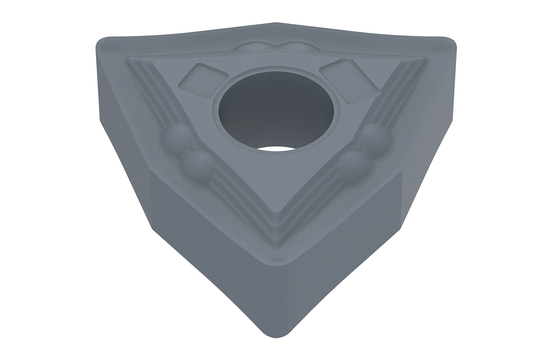

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | WNMG |
| Thickness (Inch) | 0.19 |
| Short Description | WNMG 060408EN-M30 CTPM125 |
| Long Description | CARBIDE TURNING INSERT WNMG 060408EN-M30 CTPM125 |
| Grade | CTPM125 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 6.50 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.26 |
| Direction Of Hand | Neutral |
| Chip Breaker | -M30 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Rake Angle | 15 degrees |
| Tolerance Class | M |
