Ceratizit
7.5019116E9

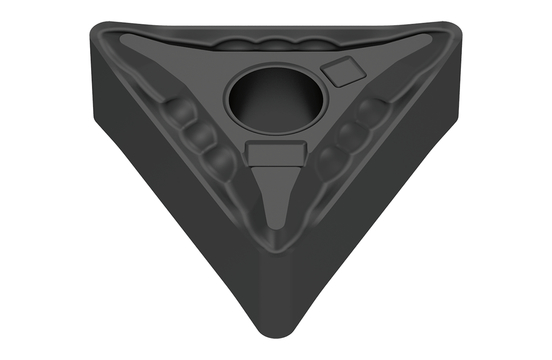

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TNMG |
| Thickness (Inch) | 0.19 |
| Short Description | TNMG 160404EN-F30 CTCM120 |
| Long Description | CARBIDE TURNING INSERT TNMG 160404EN-F30 CTCM120 |
| Grade | CTCM120 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.65 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.5 |
| Direction Of Hand | Neutral |
| Chip Breaker | -F30 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Rake Angle | 15 degrees |
| Tolerance Class | M |
