Ceratizit
7.4072401E9

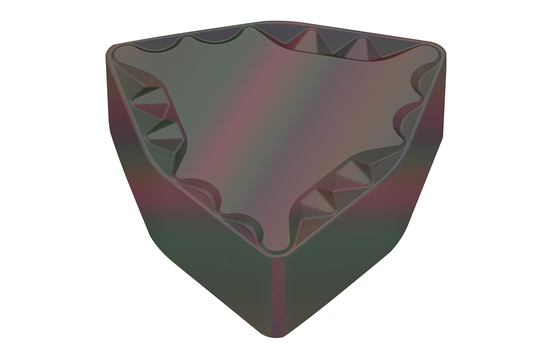

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 13.0 |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNEF |
| Thickness (Inch) | 0.52 |
| Short Description | WNEF 161325S45-R59 CTCP625 |
| Long Description | CARBIDE PEELING INSERT WNEF 161325S45-R59 CTCP625 |
| Grade | CTCP625 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.28 Inch |
| Inscribed Circle Diameter | 1.26 Inch |
| Inscribed Circle Diameter (Metric) | 32.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.28 |
| Max. Depth Of Cut (Metric) | 7.0 |
| Chip Breaker | -R59 |
| Face Land Size Code | S45 |
| Face Land Angle | 4 degrees |
| Cutting Edge Angle Major | 25 degrees |
| Index Count | 6.0 |
| Tolerance Class | E |
