Ceratizit
7.4069744E9

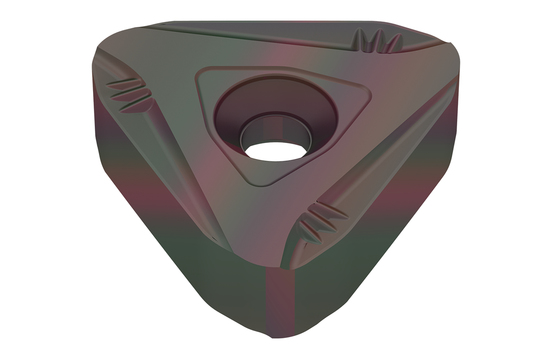

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 10.0 |
|---|---|
| Material | Carbide |
| Included Angle | 60 degrees |
| Style | NNUX |
| Thickness (Inch) | 0.4 |
| Short Description | NNUX 201020S60-M48 CTCP615 |
| Long Description | CARBIDE PEELING INSERT NNUX 201020S60-M48 CTCP615 |
| Grade | CTCP615 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.10 Inch |
| Inscribed Circle Diameter | 1.11 Inch |
| Inscribed Circle Diameter (Metric) | 28.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.1 |
| Max. Depth Of Cut (Metric) | 2.5 |
| Chip Breaker | -M48 |
| Screw Hole Diameter (Decimal) | 0.28 |
| Screw Hole Diameter (Metric) | 7.0 |
| Face Land Size Code | S60 |
| Face Land Angle | 6 degrees |
| Cutting Edge Angle Major | 20 degrees |
| Index Count | 6.0 |
| Tolerance Class | U |
