Ceratizit
7.4060023E9

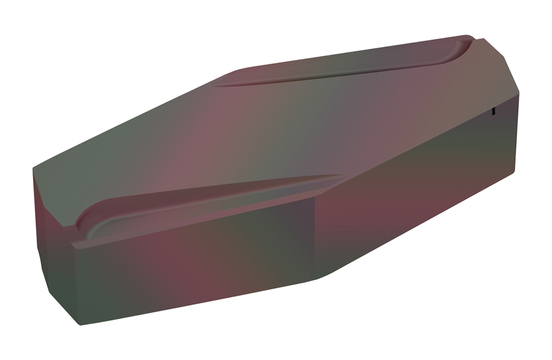

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 8.0 |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | YNGX |
| Thickness (Inch) | 0.32 |
| Short Description | YNGX 150820S57-R52 CTCP635 |
| Long Description | CARBIDE PEELING INSERT YNGX 150820S57-R52 CTCP635 |
| Grade | CTCP635 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.14 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.14 |
| Max. Depth Of Cut (Metric) | 3.5 |
| Width (Decimal) | 0.48 |
| Width (Metric) | 12.0 |
| Length (Decimal) | 1.22 |
| Length (Metric) | 31.0 |
| Chip Breaker | -R52 |
| Face Land Size Code | S57 |
| Cutting Edge Angle Major | 20 degrees |
| Index Count | 4.0 |
| Tolerance Class | G |
