Ceratizit
7.405642E9

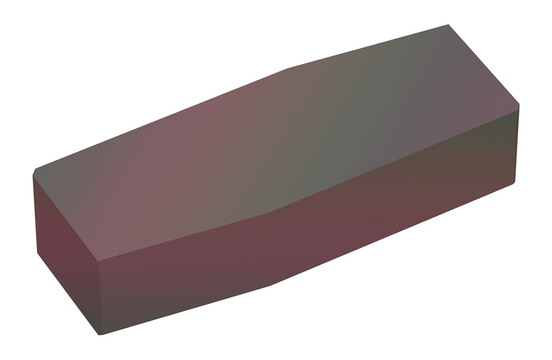

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 3.5 |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | YNCR |
| Thickness (Inch) | 0.14 |
| Short Description | YNCR 080308P10-F50 CTCP625 |
| Long Description | CARBIDE PEELING INSERT YNCR 080308P10-F50 CTCP625 |
| Grade | CTCP625 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.02 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.02 |
| Max. Depth Of Cut (Metric) | 0.5 |
| Width (Decimal) | 0.22 |
| Width (Metric) | 5.5 |
| Length (Decimal) | 0.59 |
| Length (Metric) | 14.85 |
| Chip Breaker | -F50 |
| Face Land Size Code | P10 |
| Cutting Edge Angle Major | 8 degrees |
| Index Count | 2.0 |
| Tolerance Class | C |
