Ceratizit
7.4053601E9

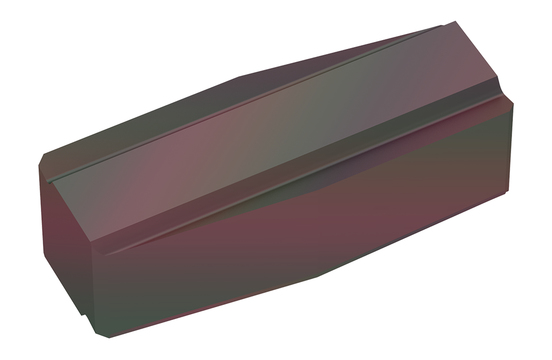

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 6.0 |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | YNCF |
| Thickness (Inch) | 0.24 |
| Short Description | YNCF 090608P90-F50 CTCP125 |
| Long Description | CARBIDE PEELING INSERT YNCF 090608P90-F50 CTCP125 |
| Grade | CTCP125 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.04 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.04 |
| Max. Depth Of Cut (Metric) | 0.8 |
| Width (Decimal) | 0.32 |
| Width (Metric) | 8.0 |
| Length (Decimal) | 0.81 |
| Length (Metric) | 20.45 |
| Chip Breaker | -F50 |
| Face Land Size Code | P90 |
| Face Land Angle | 9 degrees |
| Cutting Edge Angle Major | 8 degrees |
| Index Count | 4.0 |
| Tolerance Class | C |
