Ceratizit
7.404746E9

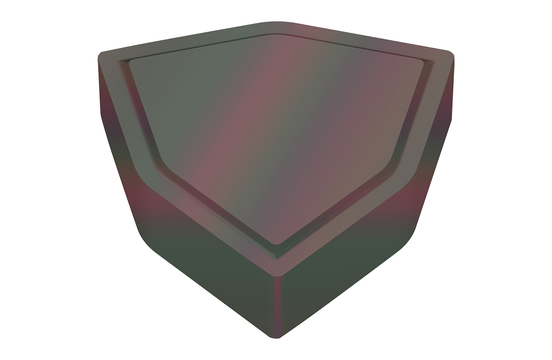

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 9.0 |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNMF |
| Thickness (Inch) | 0.36 |
| Short Description | WNMF 96S53-R51 CTCP625 |
| Long Description | CARBIDE PEELING INSERT WNMF 96S53-R51 CTCP625 |
| Grade | CTCP625 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.24 Inch |
| Inscribed Circle Diameter | 1.11 Inch |
| Inscribed Circle Diameter (Metric) | 28.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.24 |
| Max. Depth Of Cut (Metric) | 6.0 |
| Chip Breaker | -R51 |
| Face Land Size Code | S53 |
| Cutting Edge Angle Major | 30 degrees |
| Index Count | 6.0 |
| Tolerance Class | M |
