Ceratizit
7.4032021E9

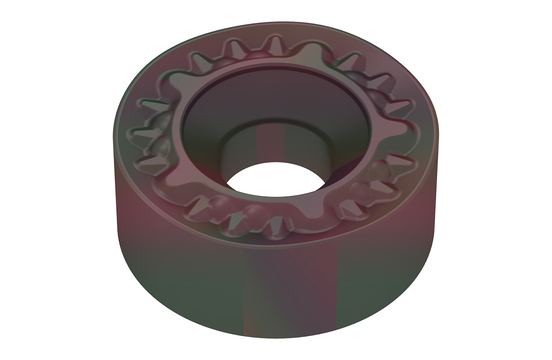

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 10.5 |
|---|---|
| Material | Carbide |
| Style | RNMH |
| Thickness (Inch) | 0.42 |
| Short Description | RNMH 281000P15-R56 CTCP635 |
| Long Description | CARBIDE PEELING INSERT RNMH 281000P15-R56 CTCP635 |
| Grade | CTCP635 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.20 Inch |
| Inscribed Circle Diameter | 1.11 Inch |
| Inscribed Circle Diameter (Metric) | 28.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.2 |
| Max. Depth Of Cut (Metric) | 5.0 |
| Chip Breaker | -R56 |
| Screw Hole Diameter (Decimal) | 0.36 |
| Screw Hole Diameter (Metric) | 9.0 |
| Face Land Size Code | P15 |
| Index Count | 5.0 |
| Tolerance Class | M |
