Ceratizit
7.4030001E9

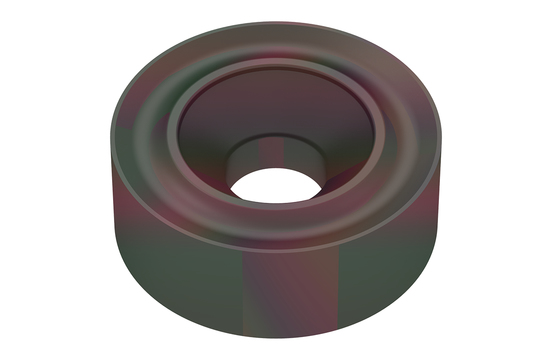

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 8.0 |
|---|---|
| Material | Carbide |
| Style | RNMH |
| Thickness (Inch) | 0.32 |
| Short Description | RNMH 200800E00-R50 CTCP635 |
| Long Description | CARBIDE PEELING INSERT RNMH 200800E00-R50 CTCP635 |
| Grade | CTCP635 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.12 Inch |
| Inscribed Circle Diameter | 0.79 Inch |
| Inscribed Circle Diameter (Metric) | 20.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.12 |
| Max. Depth Of Cut (Metric) | 3.0 |
| Chip Breaker | -R50 |
| Screw Hole Diameter (Decimal) | 0.28 |
| Screw Hole Diameter (Metric) | 7.0 |
| Face Land Size Code | E00 |
| Index Count | 5.0 |
| Tolerance Class | M |
