Ceratizit
7.4022424E9

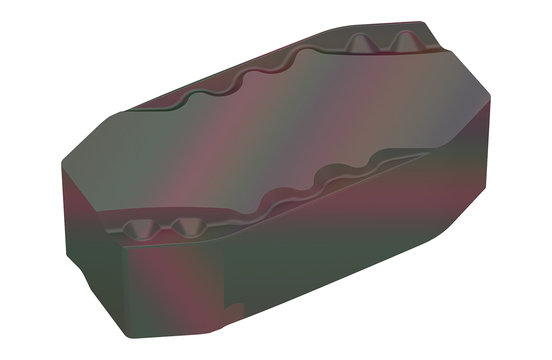

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 12.0 |
|---|---|
| Material | Carbide |
| Included Angle | 90 degrees |
| Style | LNGF |
| Thickness (Inch) | 0.48 |
| Short Description | LNGF 231225P43-R59 CTCP625 |
| Long Description | CARBIDE PEELING INSERT LNGF 231225P43-R59 CTCP625 |
| Grade | CTCP625 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.12 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.12 |
| Max. Depth Of Cut (Metric) | 3.0 |
| Width (Decimal) | 0.79 |
| Width (Metric) | 20.0 |
| Length (Decimal) | 1.58 |
| Length (Metric) | 40.0 |
| Chip Breaker | -R59 |
| Face Land Size Code | P43 |
| Face Land Angle | 4 degrees |
| Cutting Edge Angle Major | 25 degrees |
| Index Count | 4.0 |
| Tolerance Class | G |
