Ceratizit
7.4019081E9

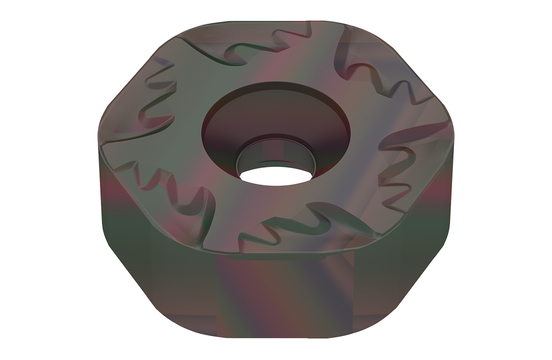

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 10.0 |
|---|---|
| Material | Carbide |
| Included Angle | 120 degrees |
| Style | HNMJ |
| Thickness (Inch) | 0.4 |
| Short Description | HNMJ 131050S60-R57 CTCP635 |
| Long Description | CARBIDE PEELING INSERT HNMJ 131050S60-R57 CTCP635 |
| Grade | CTCP635 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.16 Inch |
| Inscribed Circle Diameter | 0.87 Inch |
| Inscribed Circle Diameter (Metric) | 22.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.16 |
| Max. Depth Of Cut (Metric) | 4.0 |
| Chip Breaker | -R57 |
| Screw Hole Diameter (Decimal) | 0.29 |
| Screw Hole Diameter (Metric) | 7.2 |
| Face Land Size Code | S60 |
| Face Land Angle | 6 degrees |
| Cutting Edge Angle Major | 50 degrees |
| Index Count | 12.0 |
| Tolerance Class | M |
